18m Long Reach Boom and Arm for PC220 Excavator

Productgegevens

Certificering: CE, ISO9001: 2000, SGS

Betaling en verzendvoorwaarden

Min. bestelaantal: 1

Vind de beste prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            18m excavator long reach boom, PC220 excavator long arm, excavator long arm with warranty


Modelnr.:	HD-LDB200-2	Type:	Rupsgraafmachine
Emmercapaciteit:	0,1 ~ 0,5 m³	Materiaal:	Q345b (Sgc490)
Bloei lengte:	10000 mm	Armlengte:	8000 mm
Maximum graaf diepte:	12200mm	Maximale uitgebreide reikwijdte:	17600 mm
Maximaal graafhoogte:	13500 mm	Opvouwbare hoogte:	3040mm
Geschikt voor graafmachine tonnage:	20ton	Extra meetgewicht:	2000 kg
Emmervolume:	0,4 M3	Pin -materiaal:	42CrMo4
Lasgas:	80% argon, 20% CO2

Modelnr.:	HD-LDB200-2
Type:	Rupsgraafmachine
Emmercapaciteit:	0,1 ~ 0,5 m³
Materiaal:	Q345b (Sgc490)
Bloei lengte:	10000 mm
Armlengte:	8000 mm
Maximum graaf diepte:	12200mm
Maximale uitgebreide reikwijdte:	17600 mm
Maximaal graafhoogte:	13500 mm
Opvouwbare hoogte:	3040mm
Geschikt voor graafmachine tonnage:	20ton
Extra meetgewicht:	2000 kg
Emmervolume:	0,4 M3
Pin -materiaal:	42CrMo4
Lasgas:	80% argon, 20% CO2

Beschrijving

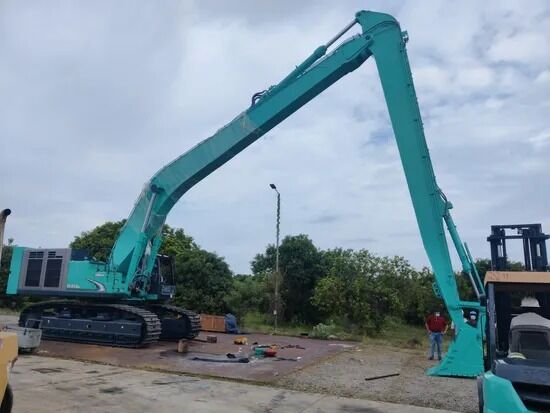

18m Long Reach Boom and Arm for PC220 Excavator

Product Description

Designed for dredging, port construction, railway construction and groundwork construction with extensive operation scope, high efficiency and enhanced safety.
Custom-designed long reach booms available for all excavator brands with detailed dimensions for PC220 models.
Complete package includes lubricant pipe system, hydraulic system, bucket, bucket cylinder, linkage, pins, and hoses.
Option to use original stick cylinder or include new stick cylinder (included with this PC220 model).
Constructed with Q345B + Q690D steel (Weldox optional) with 42CrMo4 pins for superior durability.
Precision 45-degree beveled plates before welding for optimal joint strength.
Customizable additional pipelines available upon request.
Manual welding with 80% Argon and 20% CO2 protective gas mixture for premium weld quality.
Boring machine precision adjustment for all base joints and main structures to minimize welding stress tolerance.
Includes comprehensive parts list for easy maintenance and after-sales service.
Detailed dimension drawings provided for pre-order confirmation.
Includes anti-explode valve for stick cylinder (JCB220 model).

Technical Specifications

Specification	Value
Boom length	1000 mm
Arm length	8000 mm
Max dig depth	12200 mm
Max extensive scope	17600 mm
Max dig height	13500 mm
Folding height	3040 mm
Bucket volume	0.4 m³
Counter weight	Not required
